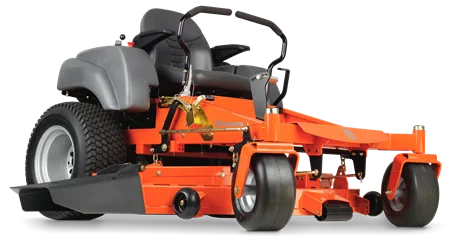

Husqvarna MZ 61

Discover a superior level of performance with Husqvarna’s MZ series of zero-turn mowers. Featuring a 61-inch cutting deck, the MZ 61 mower is ready to tackle your residential or professional property maintenance. The heavy-duty steel frame and commercially rated hydraulic system create the ultimate mowing experience. A high-back seat with armrests and adjustable steering levers boost operator comfort. Meanwhile, the 27-horsepower Endurance engine means you’ll have plenty of power when you need it— season after season.

MODEL 967277501

Motor/engine manufacturer: Briggs & Stratton

Motor/engine model: Endurance

Power output: 27 hp

Cutting width: 61 in

Limited warranty

Homeowner Warranty: 4 years or 400 hours (whichever occurs first)

Commercial Warranty: 4 years or 400 hours (whichever occurs first)

Capacity

Productivity:  4.2 acres/hr

Speed forward max:  8.5 mph

Cutting deck

Cutting width:  61 in

Cutting deck type:  Fabricated

Cutting methods:  Collect/Mulch/Side discharge

Cutting deck material:  Steel

Deck thickness:  11 gauge

Cutting height steps:  12

Blade engagement:  Electric clutch

Clutch rating:  200 ft.lb

Blades:  3 pcs

Blade-tip speed:  18500 fpm

Anti-scalp wheels:  3

Nose roller:  Yes

Deck lifting system:  Manual, foot assisted

Powder-coated cutting deck:  Yes

Spindle/mandrel type:  Cast Aluminum

Greasable mandrels:  Yes

Deck Wash Port:  No

Cutting height, min (approximate):  1.5 in

Cutting height, max (approximate):  4.5 in

Dimensions

Base machine, length:  75.5 in

Base machine, height:  42 in

Base machine, width (chute down):  76 in

Base machine, width (chute up):  62.3 in

Weight:  770 lbs

Tire size, front Width:  6.5 in

Tire size, front Diameter:  13 in

Tire size, front Diameter wheel:  6 in

Drive system

Transmission type:  Hydrostatic

Transmission manufacturer:  Hydro-Gear

Transmission model: ZT 3100

Pump displacement:  10 cm³

Fan-cooled pumps:  Yes

Engine

Motor/engine manufacturer:  Briggs & Stratton

Engine name:  Endurance Series

Power output:  27 hp

Cylinder displacement:  49.4 cu.inch

Cylinders:  2

Engine cooling:  Air

Generator:  16 A

Air filter type:  Standard

Power/fuel type:  Gasoline

Engine lubrication type:  Full pressure

Oil filter:  Yes

Fuel tank volume (with reserve):  5 gal (US)

Fuel tank location:  Side (Single)

Equipment

Seat material:  Vinyl

Seat spring:  Yes

Seat back height:  High

Hour meter type:  Yes

Cup holder:  Yes

Armrests:  Yes

ROPS:  Optional

Seat type:  Standard high back, arm rests
